DCcircuits2Appls 2.0
Device: iOS iPad Only
Category: Education
Price: Free, Version: 1.5 -> 2.0 (iTunes)
Description:This App has 14 examples of how circuit analysis techniques such as KCL, KVL and
Superposition are applied. It is not a substitute for the lectures and coursework
necessary to learn circuit analysis. This app simply provides examples of circuit
analysis in addition to what is provided in your class lectures and textbook.
This App is a follow on to DCcircuits1.
DCcircuits2 has more circuits with dependent sources.
There are a total of 14 circuits that are analyzed:
3 Power

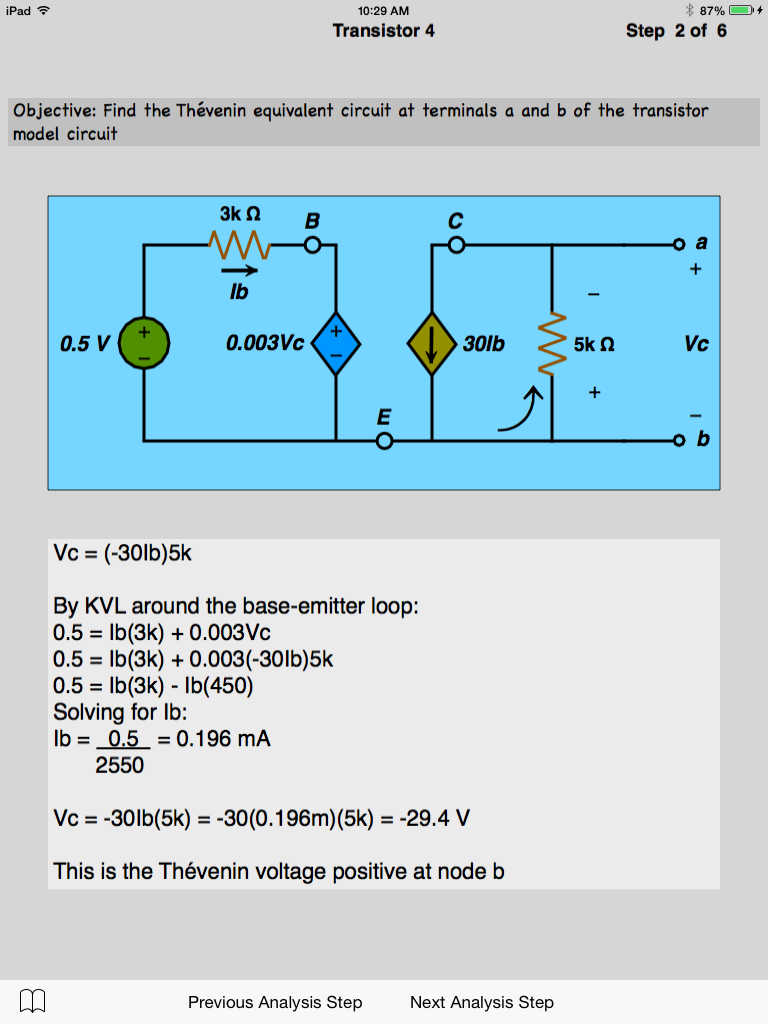

4 Transistor
1 Resistance
3 Thevenin
3 Norton
Press the "bookmark" icon to bring up the list of circuits. Select a circuit in the popover and
then press outside the popover to dismiss it and display the selected circuit. The interface allows you to step forward or backward through each analysis step.
What's New
Built for iOS 8.3
Changed Popover programming to work under iOS8.x
